GLF3002

Single Cell Li-Ion/Polymer Battery Protection IC

REQUEST SAMPLES
Features Description Package Download
Features

Over Charge Voltage Detection：VOC: 4.30 V VDD Typ. ; Accuracy : ± 1%

Over Discharge Voltage Detection： VOD: 2.39 V VDD Typ.

Over Charge Current Detection：IOC: 3 A Typ. ; IOC with 12 ms Delay Time to avoid false trigger

Over Discharge Current Detection：IOD: 6 A Typ. ; IOD with 10 ms Delay Time to avoid false trigger

Load Short Circuit Protection：ISC: 15 A Typ.

Thermal Shutdown Protection

Battery and Charger Reverse Polarity Connection Protection

Low RON：27 mΩ Typ. at 3.6 VDD

Low Quiescent Current：IQ: 2.6 µA Typ. @ 3.6 VDD

Description

The GLF3002 is a highly integrated solution for single cell rechargeable battery protection. It incorporates a low on-resistance power NFET along with high precision over voltage, over current, over discharge, and short circuit protection.


When the battery voltage exceeds the over-voltage detection threshold, the GLF3002 turns off the charging switch after a preset delay. Similarly, if the load current surpasses the over discharge current threshold, the discharge switch is turned off after a preset delay. If the discharge current reaches the short circuit protection level (ISC), the GLF3002 immediately shuts down and remains off to prevent serious system damage. A short circuit delay is included to avoid false triggering.


Package

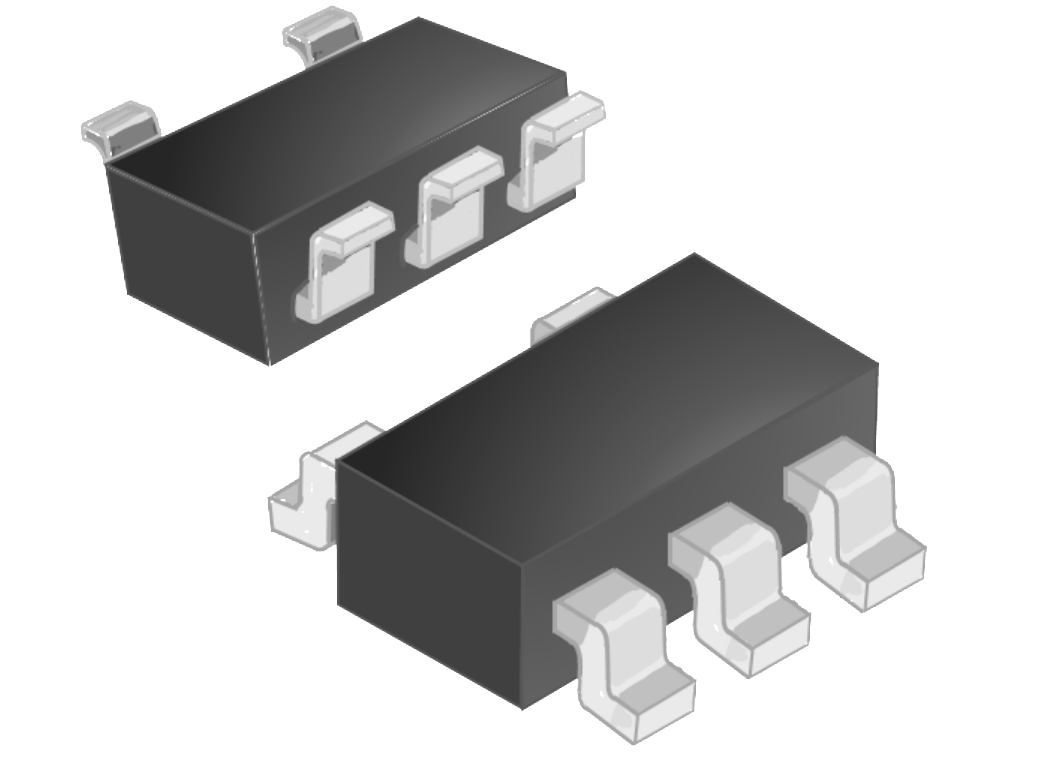

SOT23 - 5L
